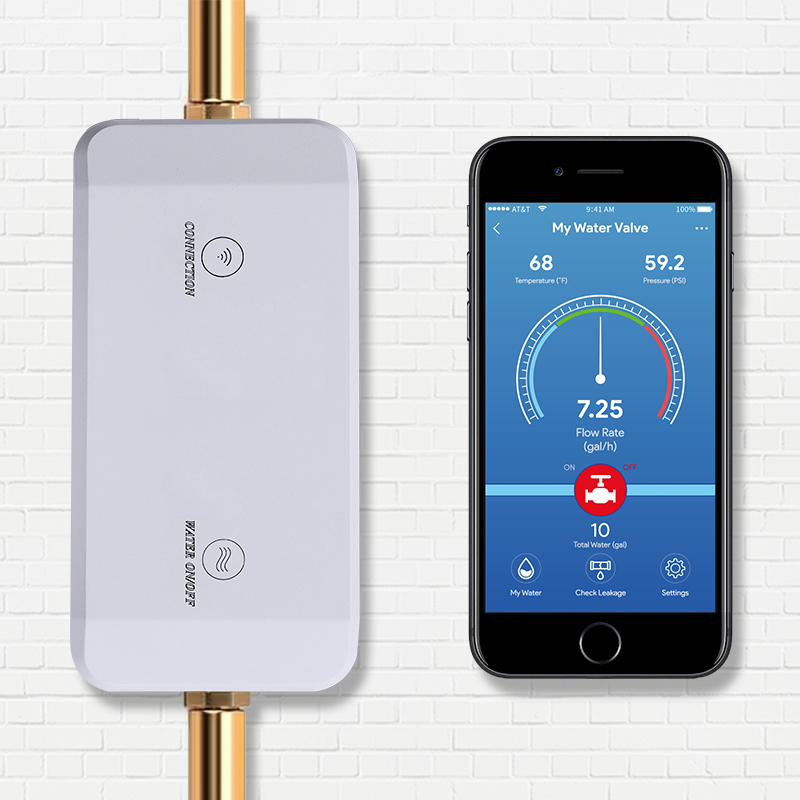

1,Turn on/off, meter water pressure, meter water
temperature, meter flow rate
2,Power supply :5V 2A
3,Thread pitch:3/4"-14 NPS
4,Wireless frequency:2.4GHz, Wireless distance:45m, Wireless Standard:IEEE 802.11b/g/n
5,Operating temperature:0 – 50℃(32-122℉ )
Storage temperature:-10 – 65℃(14 – 149℉)
Relative humidity: 10 – 80%, Product life: >
90,000, operating hours (10 years)
6,Water temperature:-10 ℃~65℃ (14℉ ~149℉ )
Accuracy: ±0.5 ℃(0.9℉)
7,Water pressure:0-200 psi Accuracy（Full
scale）: ±1% ±2.18
8, Water flow rate: 1"--- 0.11~34.3gal/min;
Accuracy: 0.11~0.18gal/min ±5%, 0.18~34.3gal/min ±2%, 3/4"--0.07~22gal/min;
Accuracy:0.07~0.11gal /min ±5%, 0.11~22gal/min±2%

Sales Area

North America,South America,Europe,Southeast Asia,Other

Certification

FCC

Material

PC+ABS+copper pipe

Product Size

195*78*102 mm

Carton Size

255*165*140 mm

Net Weight

1.680 g

Warranty

12 month

Packing Quantity

Packing List

MANUAL

Delivery Date

35 day

Power Supply Type

5V 2A

Connect Voice Platforms

Value-added Services

Tuya provides a series of service capabilities to help brands quickly complete the product intelligent、sales intelligent and service intelligent.

Online Control Panel

The control panel is used to display and execute product functions. Users can control smart devices through the panel remotely.

Configure Device Panel

After OEM products,you can design and develop panels as needed,or you can use a wealth of custom components to configure beautiful and easy-to-use panels.
