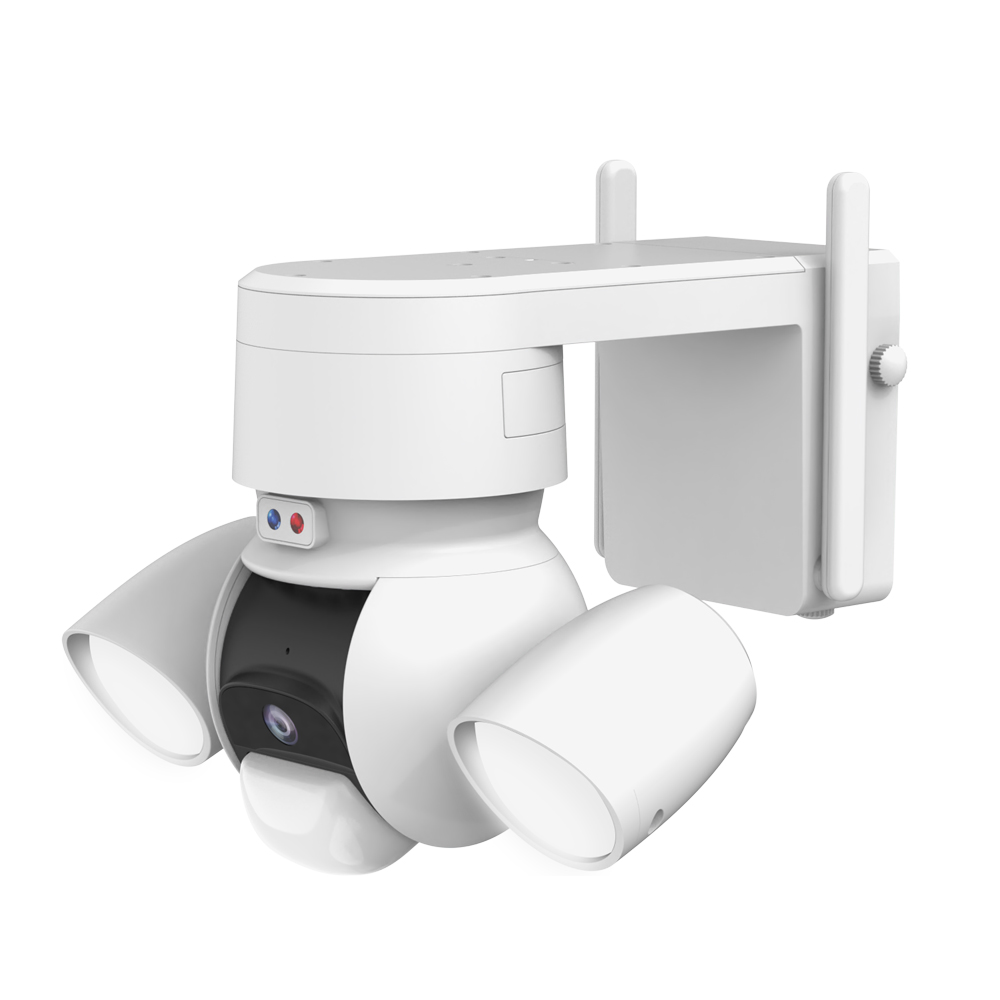

COURTYARD CAMERA OUTDOOR 2K HD LOW POWER BATTERY PTZ DOME CAMERA
Product model：BCT-2KPTW
Protocol：Wi-Fi
Certification：CERoHSFCC
Video Compression：H.264
battery capacity：18800ma
Product Parameters
1. 2K ultra HD outdoor PTZ dome camera, delicate and clearer image
2. Customized special PIR optical path design: 9.8ft / 3m installation distance from the ground; 65ft / 20m accurate detection distance; 110°detection range
3. Exclusive PIR / radar design, less false alarm, more accurate
4. Exclusive ultra long distance infrared and courtyard lamp design
5. Exclusive 12W high power foldable solar panel design (optional)
6. Wake up instantly if human are detected; stay on sleep mode with super low power consumption at other times to maintain basic heartbeat function
7. AI function: human detection/sound siren/crying siren
8. Separated IR design reduces impact of PIR heat false alarm; PIR / radar double detection improves the wake-up accuracy in extreme outdoor environments effectively
9. PTZ rotation: Horizontal 0~355°, vertical 90~160°
10. Alarm light flashes and notification push of alarm sound
11. 18800ma large capacity battery
12. Motion detection & PIR human siren can be selected
13. 65-98ft / 20-30m Infrared night vision distance
14. Two-way audio intercom
15. Screenshot, video file and timeline playback, easy to retrieve
16. Easy to install and uninstall
17. Multi users sharing
18. Multiple APPs: Tuya (optional) / Alexa (optional) / Google home (optional)
19. Power supply 5V1.5A, wall mounting, ceiling mounting, desktop
20. TYPE-C USB charging interface, ON/OFF button, TF card slot
21. Cloud storage
22. IP66 waterproof
12W foldable solar panel for outdoor PTZ dome camera
1. Working voltage (VMP): 5V
2. Working current (IMP): 2400mA
3. Peak power (PMAX): 7.5W
4. Silicon wafer: single crystal cell
5. Chip efficiency 19.6%
6. Surface material: ETFE, light and good thermal conversion
7. Three pieces can be folded into one and packed with the dome camera together, which is very convenient for shipment.
8. Working temperature: - 30 ° C ~ + 75 ° C
Value-added Services
Tuya provides a series of service capabilities to help brands quickly complete the product intelligent、sales intelligent and service intelligent.
Online Control Panel
The control panel is used to display and execute product functions. Users can control smart devices through the panel remotely.
This picture is an example of a mobile phone control interface. If you want to experience how the mobile phone controls this product.
Please use the "Smart Life" App to scan the QR code.
Smart Life-Me-Top Right Corner
Download Now.
Method 1
Scan to Download
Method 2
Search Smart Life in App Store or
Android App Store to Download
Configure Device Panel
After OEM products,you can design and develop panels as needed,or you can use a wealth of custom components to configure beautiful and easy-to-use panels.
