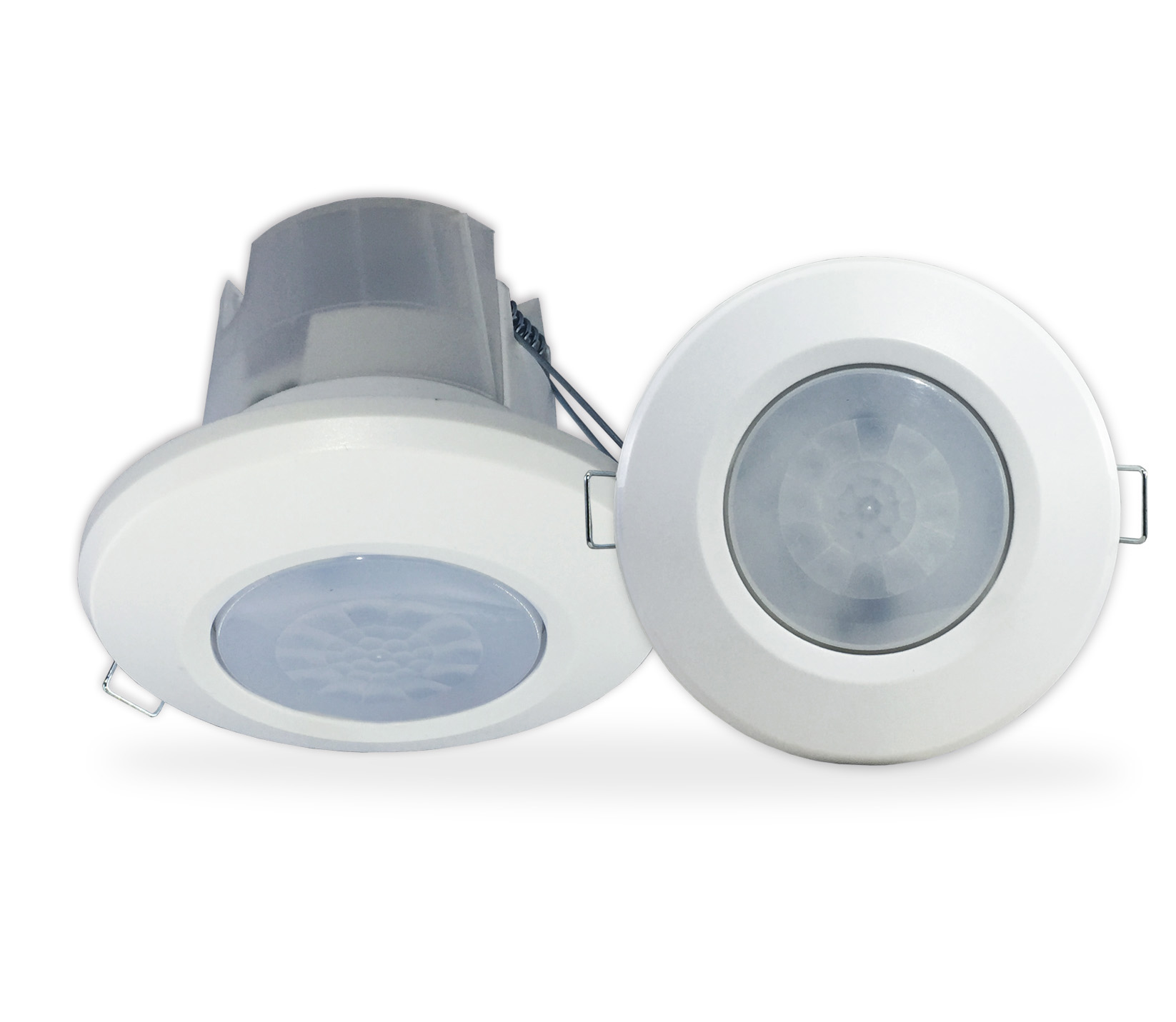

Wi-Fi Indoor Ceiling Mount Presence Detector

Sample
Min.Order:
1000 Pieces
Sample:

Product modelRC171WA2

ProtocolWi-Fi

Sales AreaEurope

CertificationCERoHSREACH

Product
Parameters
Overview
Smart Features

Product Parameters

Product model
RC171WA2
Product Category
Down Lights
Protocol
Wi-Fi
Product Color
White
Market Specifications
General Version
Function Description
▸Tuya APP based
▸Built-in Tuya TYWE3S WIFI module
▸Rated Voltage: 220-240V, 50/60Hz
▸Detection Range: Ø9m at 2.5m height at 20°C
▸Detection Angle: 360°
▸Rated Protection: IP20
▸Installation Ceiling Mount Spring Clip Box
▸Time Setting: 30s - 30m
▸Lux Setting: 10 - 2000 Lux
▸Sens Setting: 25 - 100%
▸Reset Button Press button > 6s
▸LED Indicator:
Blue LED (Quick Flash): Smart Mode
Blue LED (Slow Flash): AP Mode
Sales Area
Europe
Certification
CE,RoHS,REACH
Material
PC
Product Size
99*99*108 mm
Net Weight
/ g
Warranty
18 month
Packing Quantity
/
Packing List
Product, instruction, certificate of conformity
Bulk Delivery
/ day
Power Supply Type
Main Power
Rated Voltage(V)
/
Operation environment
Indoor
IP Rating
20
Watts
/
Lumens
/
Color Temperature
/
Dimmable
Yes
Working Lifespan
/
Bulb Beam Angle
/
Light Source
LED
Ra
/
PF
/

Value-added Services

Tuya provides a series of service capabilities to help brands quickly complete the product intelligent、sales intelligent and service intelligent.

Online Control Panel

The control panel is used to display and execute product functions. Users can control smart devices through the panel remotely.

This picture is an example of a mobile phone control interface. If you want to experience how the mobile phone controls this product.

Please use the "Smart Life" App to scan the QR code.

Smart Life-Me-Top Right Corner

Don't have Smart Life yet?
Download Now.

Method 1

Scan to Download

Method 2

Search Smart Life in App Store or
Android App Store to Download

Configure Device Panel

After OEM products,you can design and develop panels as needed,or you can use a wealth of custom components to configure beautiful and easy-to-use panels.
