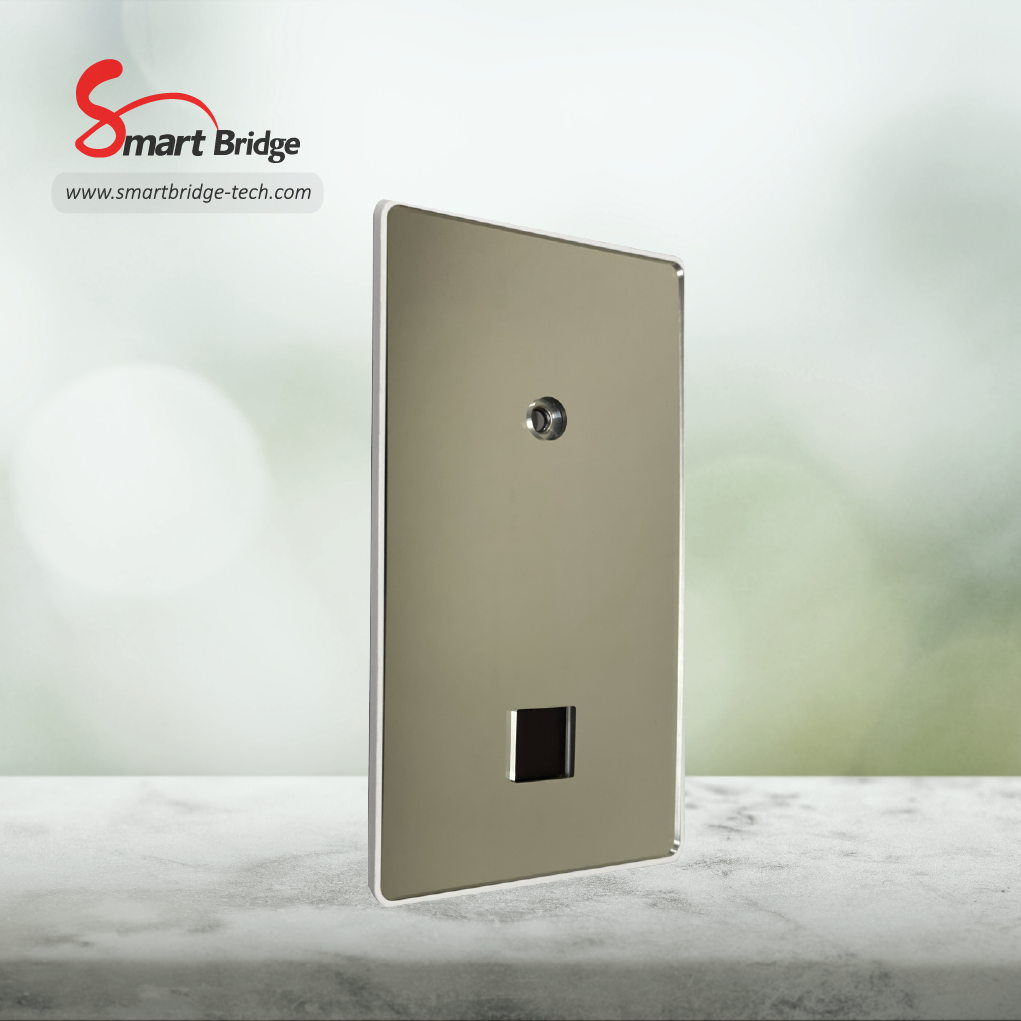

WiFi Magic Mirror-Quick Body Temperature Detector

Product model9800N-000

Communication typeWi-Fi

Sales AreaNorth America,South America,Europe,Japan and South Korea,Southeast Asia,Middle East,Africa,Australia,Asia,Hong Kong, China,Macao, China,Taiwan, China,Mainland, China

Passed CertificationCEFCC

Product on Sale Time2021-June

Online Control Panel

The control panel is used to display and execute product functions. Users can control smart devices through the panel remotely.

This picture is an example of a mobile phone control interface. If you want to experience how the mobile phone controls this product, please use the "Tuya Smart" App to scan the QR code.

Tuya Smart—Me—Top Right Corner

Don't have Tuya Smart yet?
Download Now.

Method 1

Scan to Download

Method 2

Search TuyaSmart in App Store or
Android App Store to Download

Configure Device Panel

After OEM products,you can design and develop panels as needed,or you can use a wealth of custom components to configure beautiful and easy-to-use panels.

Product Parameters

Product model
9800N-000
Product Category
Temperature and Humidity Sensor
Product Color
white
Market Specifications
IN Standard
Function Description
WiFi Magic Mirror is one of our contactless body temperature detector serial product. It uses a high precision 8 x 8 Thermopile Array Sensor to capture, collect and analyze temperature (thermal energy) distribution data to obtain the correct information to further receive the output temperature from the device. Only measures the temperature (thermal energy) from the person and output the temperature data to the device.
Features and Specification:
¹ Using 8 x 8 Thermopile Array sensor to capture temperature from forehead.
² With OLED to display the temperature
³ Report alarm with buzzer (Pass or Fail)
⁴ Near-instant Measuring : 3 sec per person
⁵ Distance : 30 to 50 cm
⁶ FOV : 35 degree for V and H
⁷ Accuracy : ±0.3° C
⁸ Low power design
Application Area:
We would like to recommend Magic Mirror to you to measure temperature with contactless. Especially, it is suitable for public spaces to use such as...
¹ Public spaces
² Customs
³ School
⁴ Offices
⁵ Hospital
Sales Area
North America,South America,Europe,Japan and South Korea,Southeast Asia,Middle East,Africa,Australia,Asia,Hong Kong, China,Macao, China,Taiwan, China,Mainland, China
Minimum Order Quantity
500
Passed Certification
CE,FCC
Product Size
104*22*181 mm
Packing List
WiFi Magic Mirror/model. 9800N-000/dimension: 104x22x181mm/device for IoT applications
Power Supply Type
External AC-to-DC 5V/1A switching power adapter
Operation environment
Indoor
Product on Sale Time
2021-June

Product Functions

Power
Thermometric Alarm
Set Temp
Thermometric Scale
Fault
