Sigmesh Smart Sensor Kit | PIR Motion Detector | Tuya Expo

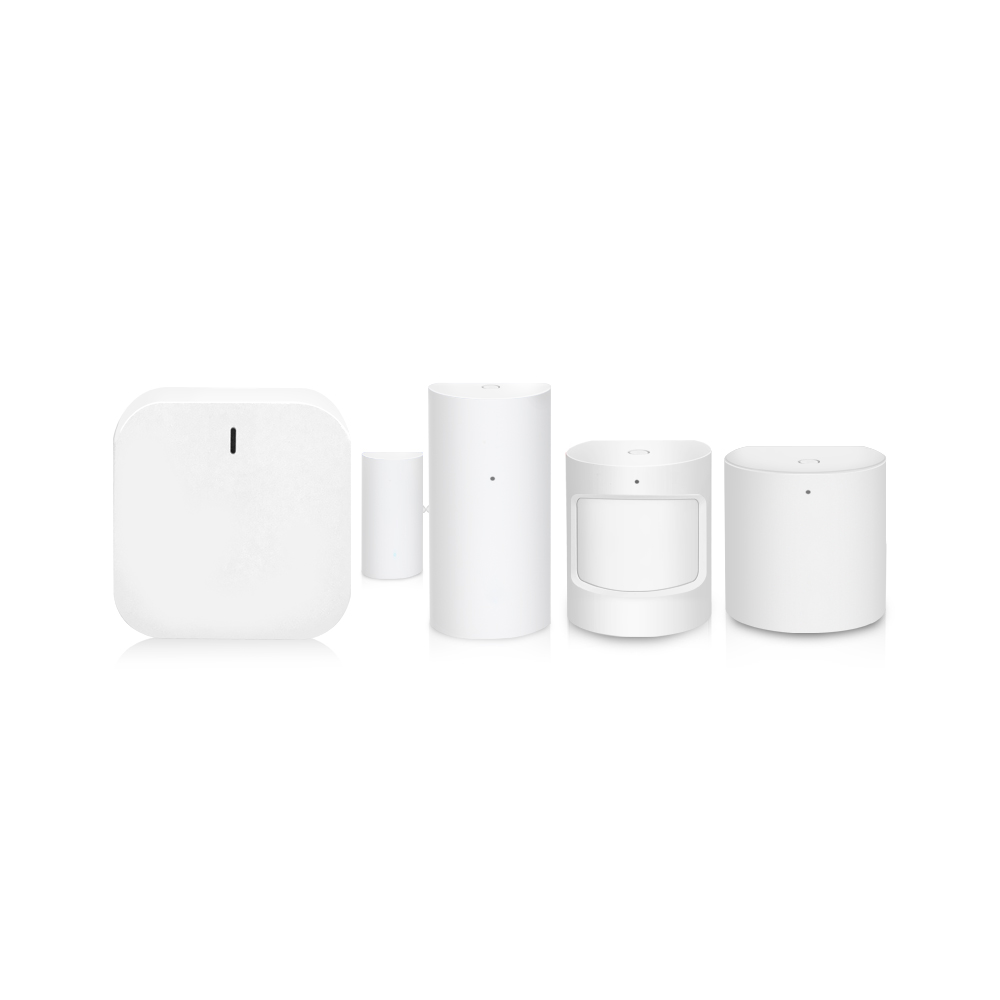

Sigmesh Smart Sensor Kit

Product modelBS-GTDM

Communication typeWi-Fi,SigMesh

Sales AreaMainland, China,North America,South America,Europe,Japan and South Korea,Southeast Asia,Middle East,Africa,South Korea,Japan,Asia,Australia,Other

Online Control Panel

The control panel is used to display and execute product functions. Users can control smart devices through the panel remotely.

This picture is an example of a mobile phone control interface. If you want to experience how the mobile phone controls this product, please use the "Tuya Smart" App to scan the QR code.

Tuya Smart—Me—Top Right Corner

Don't have Tuya Smart yet?
Download Now.

Method 1

Scan to Download

Method 2

Search TuyaSmart in App Store or
Android App Store to Download

Configure Device Panel

After OEM products,you can design and develop panels as needed,or you can use a wealth of custom components to configure beautiful and easy-to-use panels.

Product Parameters

Product model
BS-GTDM
Product Category
PIR Motion Detector
Product Color
white
Market Specifications
Japanese Version,EU Standard,Regular Version,FR Standard,AU Standard,US Standard,British Version,UK Standard,Metering Version,IN Standard,Brazil Standard
Battery Type
Lithium Battery
Function Description
Gateway:
App/Platform:Tuya
OS support:Android/IOS
Transmission Protocol:BLE 4.2/5.0/WiFi,802.11bgn
Power support:AC90~250V/EU/US/UK socket
Sigmesh Wireless distance:Max 90 meters(Empty area)
WiFi Wireless distance:Max 50 meters(Empty area)
Operating Temperature:-10℃~+50℃
Operating Humidity:Maximum 95%RH
Dimensions: 45.5mm×45.5mm×35mm
Door Sensor :
OS support:Android/IOS
Transmission Protocol:BLE 4.2
Power support:3V/CR2 Lithium Battery
Sigmesh Wireless distance:Max 90 meters(Empty area) Detecting distance:≤15mm
Operating Temperature:-10℃~+50℃
Operating Humidity:Maximum 95%RH
Dimensions: 57×28×18mm(alarm) 31×18×12mm(Magnet)
Montion Sensor:
App/Platform:Tuya
OS support:Android/IOS
Transmission Protocol:BLE 4.2
Power support:3V/CR2 Lithium Battery
Sigmesh Wireless distance:Max 90 meters(Empty area)
Detecting Range:≤8 Meters
Viewing angel:120 degree
Operating Temperature:-10℃~+50℃
Operating Humidity:Maximum 95%RH
Installation Height:1.2~2.1 Meters
Dimensions: 46.5mmx38mmx35mm
T&H
App/Platform:Tuya
OS support:Android/IOS
Transmission Protocol:BLE 4.2
Power support:3V/CR2 Lithium Battery
Sigmesh Wireless distance:Max 90 meters(Empty area)
Measure Temperature Range:-20°C~+60°C,±2℃
Measure Humidity Range:0~100RH,±5%RH
Operating Temperature:-10℃~+50℃
Operating Humidity:Maximum 95%RH
Dimensions:40x40x23mm
Sales Area
Mainland, China,North America,South America,Europe,Japan and South Korea,Southeast Asia,Middle East,Africa,South Korea,Japan,Asia,Australia,Other
Minimum Order Quantity
1000
Warranty
13 month
Packing Quantity
1000

Product Functions
