WIFI TUYA GSM Alarm System
Product model：PG-103
Product Category：Alarm Hub
Communication type：Wi-Fi
Supplied by：Shenzhen PGST Co.,Ltd
Online Control Panel
The control panel is used to display and execute product functions. Users can control smart devices through the panel remotely.
Product Parameters
Product model
PG-103
Product Category
Alarm Hub
Market Specifications
EU Standard,US Standard,UK Standard,AU Standard
Battery Type
Lithium Battery
Function Description
* Wi-Fi+ 3G/4G/ GSM alarm system, supports multiple alarm notification channels, like APP push/ SMS/ voice phone call, etc.
* Support APP remote arm/disarm, parameter setting and accessory management.
* Based on uCOS - III operation system with multi-task function
* 3G (only in 3G version)/WiFi online to obtain equipment latest working status, auto alarm when offline.
* Built-in powerful CPU master based on 32-bit Cortex-M3 core.
* Reserved remote GPRS TCP / UDP protocol channel, compatible with multiple alarm center network protocol to facilitate network alarm.
* Support the AC power failure, backup power shortage, tamper alarm and other extended alarm.
*Support phone/ SMS/ APP remote arm / disarm/recording/take picture/monitoring.
* Support main brands cameras linking alarm, remote recording, monitoring,checking.
1. Power input : DC 5V（micro USB standard interface power supply)
2. Working current: <120mA
3. Alarm current: <500mA
4. Wireless frequency: 433MHZ
5. Wireless coding: EV 1527
6. GSM bands: 850/900/1800/1900MHZ
7. Wi-Fi bands: IEEE802.11b/g/n RF standard
8. Standby battery: 3.7V/1Ah lithium-ion
9. Temperature range: -10℃ ~ 55℃
10. Humidity range: < 80%RH (No freezing)
11. Product Size: 185*125*14.7mm(LxHxT)
Minimum Order Quantity
100

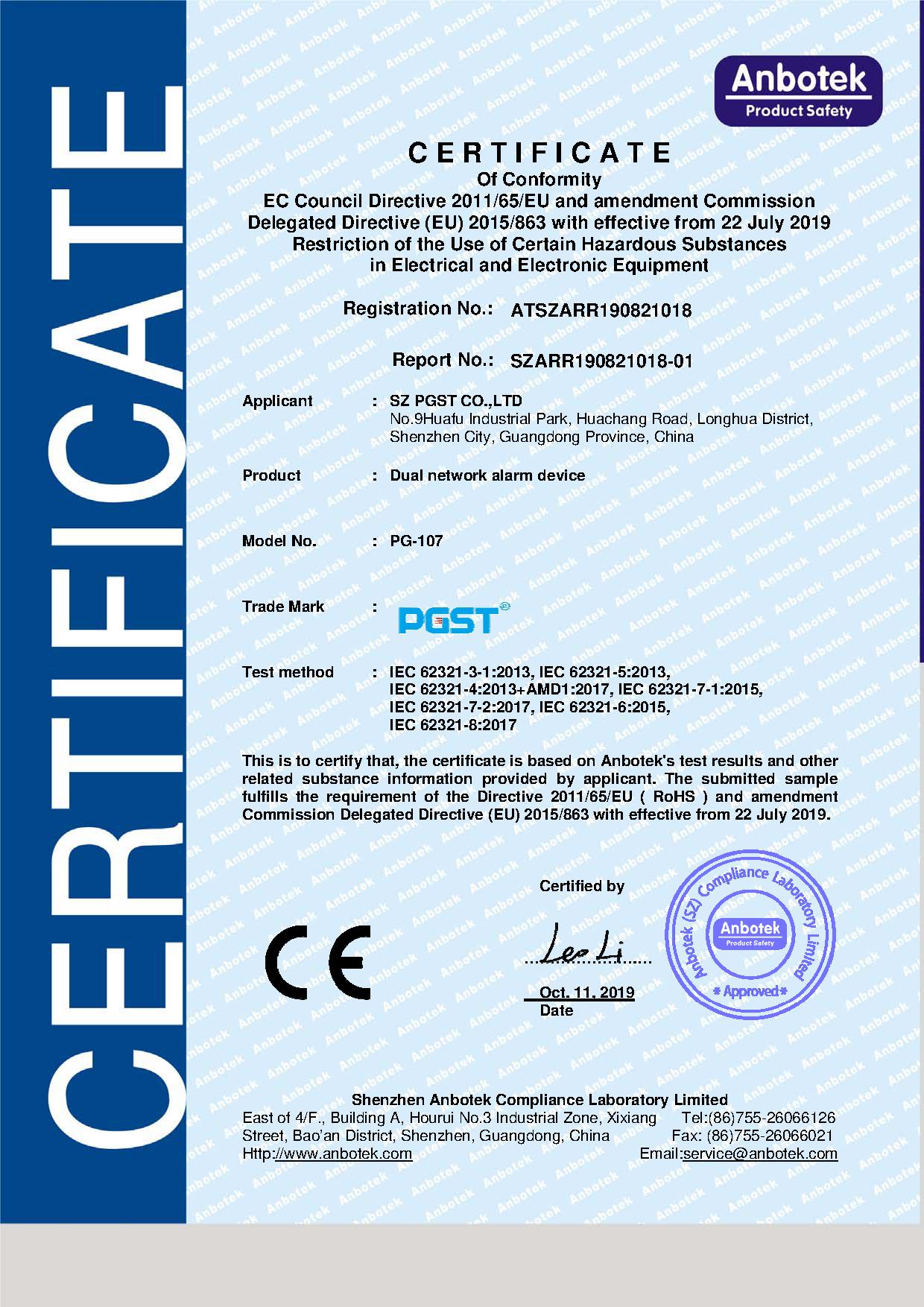

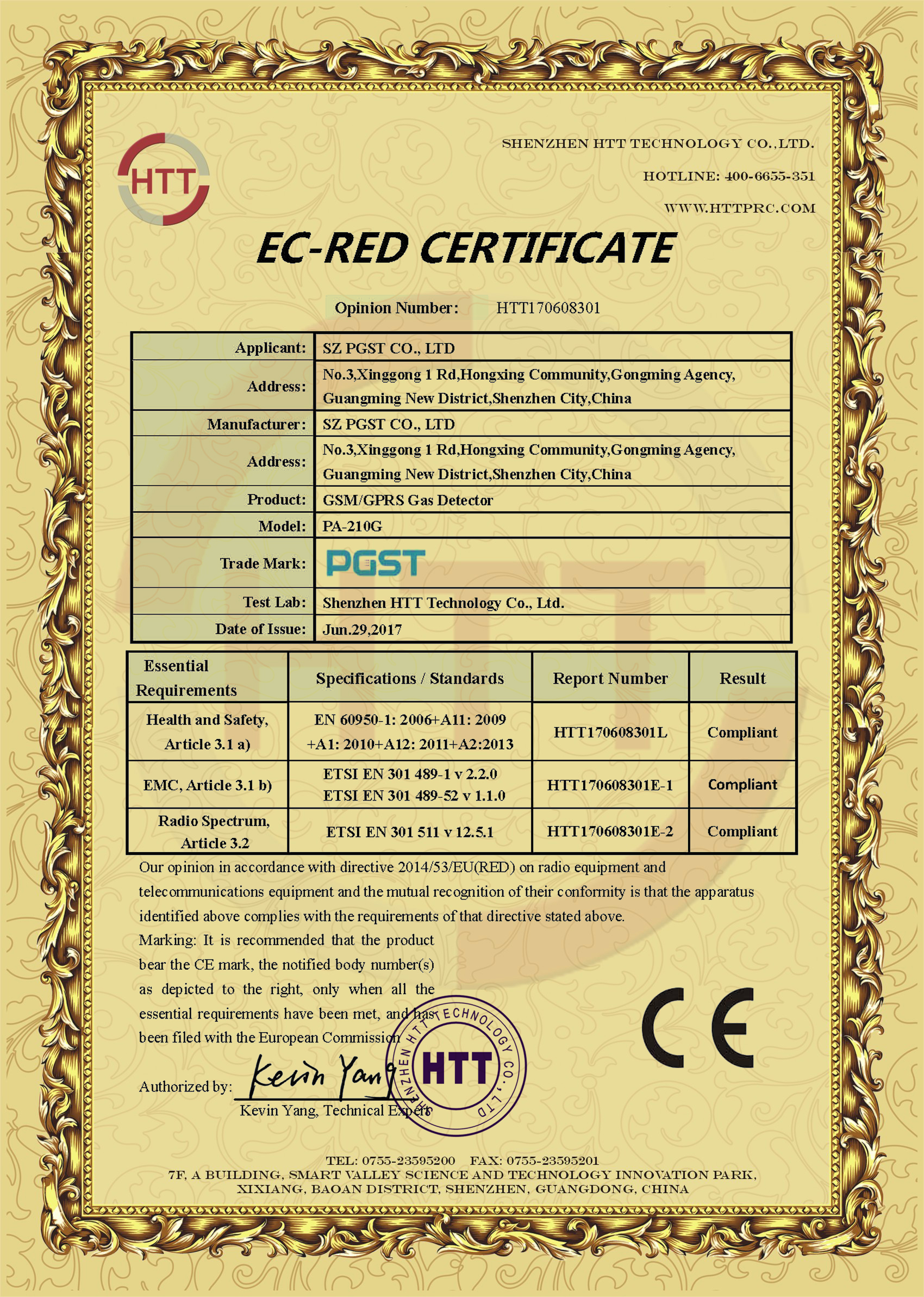

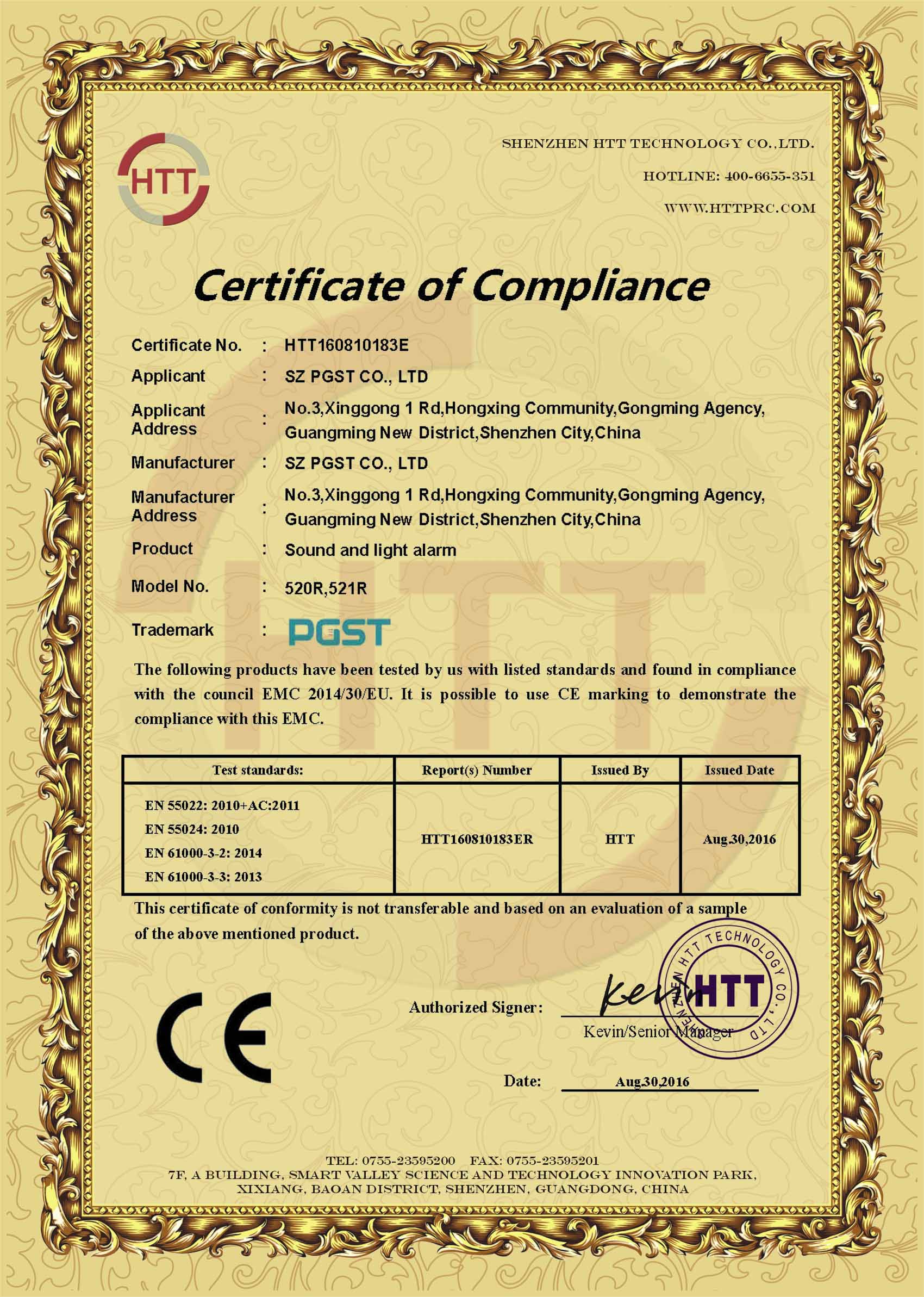

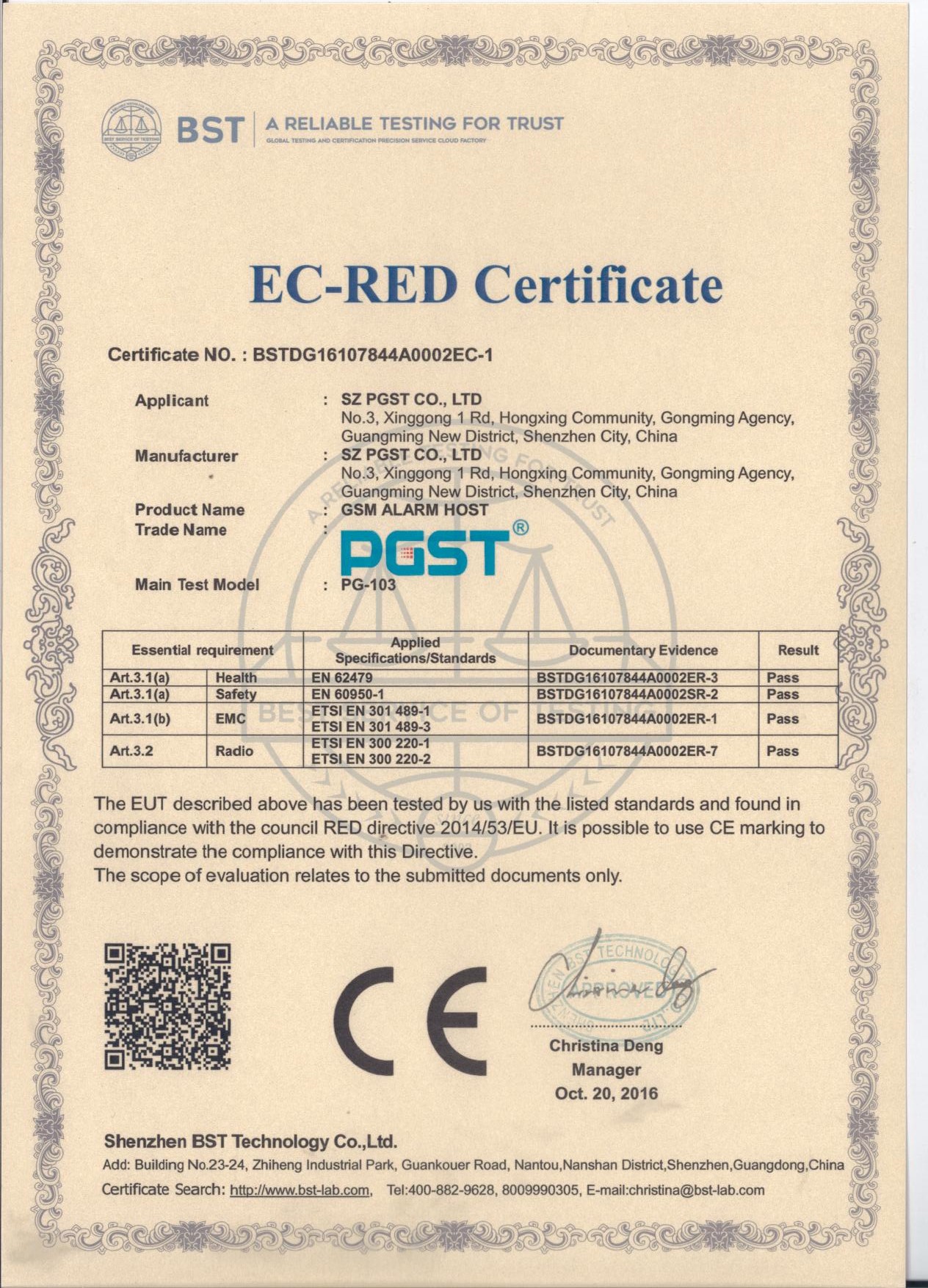

Passed Certification
CE,FCC,RoHS
Material
ABS
Package Size
210*150*72 mm
Carton Size
440*430*320 mm
Net Weight
650 g
Warranty
24 month
Packing Quantity
20
Bulk Delivery
15 day
Product Functions
Device Mode
Arm Beep
Backlight
SMS
Entry Delay
Sub admin
Exit Delay
Siren
Alarm call number
Zone attribute
Sub class
Sub state
Siren Duration
Arm SMS
Call
Alarm message
Sub type
Power State
Connect Voice Platforms
Value-added Services
Tuya provides a series of service capabilities to help brands quickly complete the product intelligent、sales intelligent and service intelligent.
